Canopus Belt Conveyor

Automated Convey Tech Systemautomation offers a complete range of conveyor solutions to move the materials up, down and across the warehouse. Our CANOPUS belt conveyors can handle pallets, cartons, bins, totes, bags and other types of items which are transported during inbound and outbound operations.

Designed, developed, and manufactured in our state-of-the-art manufacturing unit, our conveyors are a perfect mix of custom-developed hardware and software, easily adaptable to client needs. With our network, we provide quick sales and support anytime, anywhere.

  • Custom belt width and speed to suit your needs.
  • Inclined, declined, with or without cleat, with a variety of options.
  • Can be integrated with packing, weighing and dimensioning to provide a complete automation solution.
Any questions?
Call +971-501208242

Straight Belt Conveyor

Z-type Belt Conveyor

Inclined Belt Conveyor

Spacing Belt Conveyor

Induction Belt Conveyor

Food Grade Conveyors

Straight Belt Conveyor (Bagging Conveyor)

The belt conveyor is used for the transport of unit loads, bags and parcels, that are not suitable for roller tracks. The standard belt conveyor is equipped with a gear motor and PVC Belt. Can be used as bidirectional conveyor.

General technical data Max. load capacity 50 kg/m Max
Conveyor speed 0.1 to 1 m/s
Ambient temperature 0 to +40 °C
Drive Rated Voltage 440 V
Electrical Power Max. 3 kWr
Drive Type Gear motor with chain drive
Materials Conveyor belt Level: smooth, 2-layer, PVC
Slider bed Zinc-plated sheet steel 2.5 mm Zinc-plated sheet steel 3 mm

*The combination of maximum values is not always possible.

L Rated length range Min 2500 mm to Max.10000 mm in increment of 500 mm
H1 Belt Height 500 mm to 1000 mm in increment of 100mm
H2 Side Guard Height 50/100/150/400 mm
BW Belt Width 500 mm to 1200 mm
W Total Width BW+90mm
α Inclination Angle Max 6 degree

Notes -

  • Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
  • For Communication and interlock with panel please contact to Automated Convey Tech SystemRepresentative

Inclined-declined Belt Conveyor

The incline belt conveyor is used for the transport of unit loads, bags and parcels, that are to be carried through different floor levels. All specification are as same as that of straight belt expect the PVC belt construction and power requirement. This is also Bi-directional Conveyor.

General technical data Max. load capacity 50 kg/m Max
Conveyor speed 0.1 to 1 m/s
Ambient temperature 0 to +40 °C
Drive Rated Voltage 440 V
Electrical Power Max. 3 KW
Drive Type Gear motor with chain drive
Materials Conveyor belt Level: 2-layer, PVC Rising/falling gradient/ grooved longitudinally
Slider bed 2.5 mm Carbon Steel sheet

*The combination of maximum values is not always possible.

L Rated length range Min 2500 mm to Max.10000 mm in increment of 500 mm
α Inclination Angle Max 25 Degree
H2 Side Guard Height 50/100/150/400 mm
BW Belt Width 500 mm to 1200 mm
W Total Width BW+90mm

Note :

  • Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
  • For Communication and interlock with panel please contact to Automated Convey Tech SystemRepresentative

Spacing Conveyor

This type of conveyor is used to create gap between two consecutive parcels which may need weigh/scale/sort separately on succeeding conveyor.

General technical data Max. load capacity 30 kg/m Max
Conveyor speed 75 m/min
Ambient temperature 0 to +40 °C
Drive Rated Voltage 440 V
Electrical Power 0.75 kW
Drive Type Gear motor with Timing Pulley belt
Materials Conveyor belt PVC Belt With long lead groove on top
Slider bed 2mm Carbon Steel Sheet

*The combination of maximum values is not always possible.

L Rated length range Min 1200mm to Max. 3000 mm
H Belt Top Height 500 mm to 1200 mm in increment of 100mm
BW Belt Width 600 mm to 1200 mm
W Total Width BW+340 mm

Note :

  • Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
  • For Communication and interlock with panel please contact to Automated Convey Tech SystemRepresentative

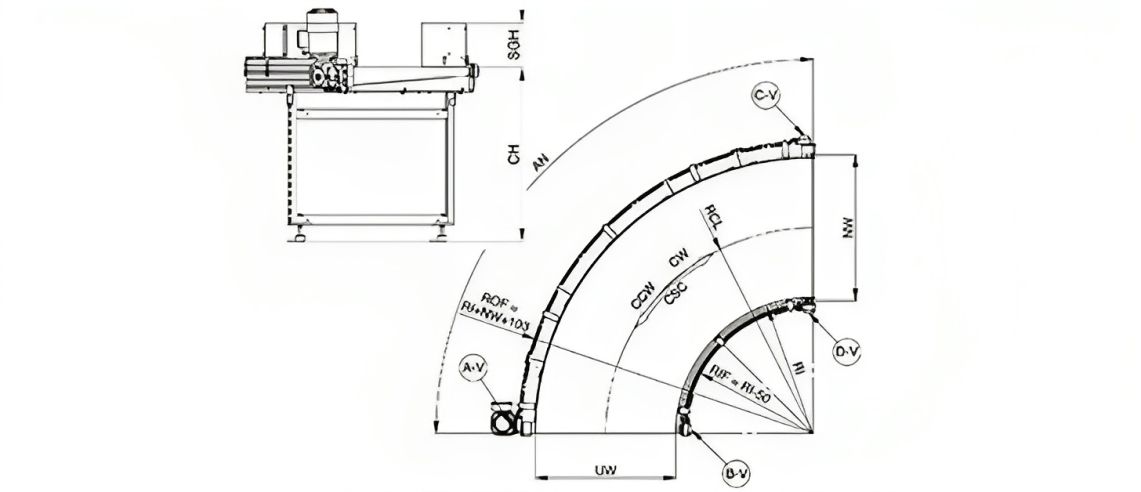

Curve PVC Belt Conveyor

The belt conveyor is used for the transport of loads through Curve path. Available in 300, 600, 900 as per requirement.

General technical data Max. load capacity 50 kg/m Max
Conveyor speed 30 m/min
Ambient temperature 0 to +40 °C
Drive Rated Voltage 440 V
Electrical Power 0.37 kW
Drive Type Gear motor with chain drive
Materials Conveyor belt Modular Plastic Belt
Slider bed UHMW Wear Strip with Zinc-plated sheet steel 2.5 mm Zinc-plated sheet steel 3 mm

*The combination of maximum values is not always possible.

α Available Curve Angle Max 90° to 30° in increment of 30°
H Belt Height 500 mm to 1000 mm in increment of 100mm
W Belt Width 200 mm to 1400 mm
R Min. Inner Radius 600 to 1400 mm

Note :

  • Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
  • For Communication and interlock with panel please contact to Automated Convey Tech SystemRepresentative.
